Top Zirconium Beads for Ink and Dye Grinding?
Choosing the right media is central to Zirconium Beads Grinding Ink Dye applications. Bead size, density, hardness, and surface finish directly affect dispersion quality. They also influence energy consumption, mill wear, and production consistency.
Dr. Elena Marquez, a process engineer specializing in fine-particle dispersion, explains, “The best zirconium bead is not simply the hardest one; it must match the pigment, mill, and target fineness.” That practical point deserves attention. A bead that performs well in titanium dioxide may behave differently with organic pigments, carbon black, or solvent-based inks.
This guide examines top zirconium beads for ink and dye grinding. It considers high-purity zirconia, yttria-stabilized zirconium oxide, and composite options. Each type offers different balances between density, fracture resistance, contamination control, and price. Small beads can improve contact efficiency. Larger beads may deliver stronger impact during difficult premixing stages.
Real production conditions matter more than catalog claims. Viscosity changes. Temperature rises. Beads slowly wear. These details are easy to overlook. They should not be.
A reliable selection process begins with laboratory trials and continues through monitored plant testing. Operators should compare particle-size distribution, color strength, gloss, filtration behavior, and bead consumption. The “best” option may still require adjustment. Sometimes, the first recommendation is wrong. That is not failure; it is useful evidence.
By connecting material science with practical milling experience, this overview helps manufacturers evaluate zirconium beads more carefully. The goal is not merely finer grinding. It is stable, repeatable, and economically responsible ink and dye production.

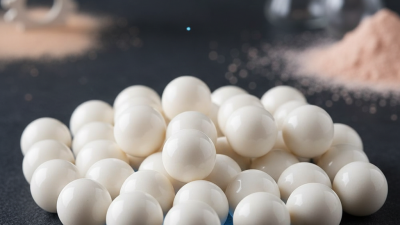

Zirconium Bead Types: 80–95% ZrO₂ and Yttria-Stabilized Grades
Top Zirconium Beads for Ink and Dye Grinding?
Zirconium beads with 80–95% ZrO₂ offer a practical balance between cost, density, and grinding performance. Higher zirconia content usually improves hardness and wear resistance. However, composition alone does not determine bead quality. Bead density, surface finish, roundness, and internal strength also affect milling results. In production, uneven beads can create unstable circulation and inconsistent particle reduction.
Yttria-stabilized zirconia beads use yttria to strengthen the zirconia structure. They resist cracking better during high-energy milling and repeated impacts. This grade suits demanding ink and dye applications, especially with viscous formulations or narrow particle-size targets. Their dense structure can transfer more force into the pigment mass. Yet, excessive energy may increase heat, so cooling and flow control remain important.
Smaller beads improve contact frequency and dispersion efficiency. Larger beads may work better when the starting particles are coarse. The correct choice depends on mill design, rotor speed, slurry viscosity, and target fineness. A higher ZrO₂ percentage is not automatically better. That assumption often causes unnecessary cost. Wear checks should include bead weight loss, slurry contamination, and screen condition. Even experienced operators can overlook temperature changes during long runs. Test batches remain valuable, because laboratory behavior may differ from continuous production.
Key Properties: 5.5–6.2 g/cm³ Density and Mohs Hardness Above 8
Top zirconium beads for ink and dye grinding should be judged by density and hardness, not appearance alone.
A practical density range is 5.5–6.2 g/cm³. This weight gives each bead stronger impact inside a horizontal or vertical mill. It can improve pigment deagglomeration while shortening circulation time. Mohs hardness above 8 also helps resist scratching and rapid flattening. Technical ceramic literature and ISO 13356:2015 data support zirconia’s high hardness and structural stability. However, Mohs values are comparative. They do not replace wear testing under real milling conditions.
The American Society for Materials describes Vickers hardness testing in ASTM C1327. This method offers more repeatable evidence than visual inspection. For ink systems, dense beads can transfer useful energy at lower bead sizes, especially when viscosity is carefully controlled. Lower wear matters too. Worn media may increase contamination, alter color strength, and raise filtration costs. Industry process reports commonly link bead wear with slurry chemistry, residence time, and mill speed. Density alone is not enough. I have seen apparently strong media perform poorly when the separator gap was mismatched. That detail is easy to miss.
Tips:
Check bead density certificates and hardness test methods before purchase. Run a short trial with your actual pigment, solvent, and dispersant. Measure particle size, temperature, and bead loss after each cycle. Keep the filling level consistent. A tiny operating change can distort the comparison. Review the result twice, because one test rarely tells the whole story.
Particle-Size Selection: 0.1–1.0 mm Beads for Ink and Dye Milling
For ink and dye grinding, bead diameter directly affects contact frequency, flow, and final particle size. Zirconium beads from 0.1 to 1.0 mm cover different milling stages. Beads around 0.1–0.3 mm suit fine pigment dispersions and narrow particle-size targets. Sizes near 0.3–0.6 mm offer a practical balance between grinding efficiency and circulation. Larger 0.6–1.0 mm beads can handle coarse agglomerates or high-solids premilling.
Particle size is only one selection factor. Ink viscosity, pigment hardness, solids loading, chamber design, and rotor speed also influence results. Smaller beads need a properly matched separator or screen. Otherwise, bead loss and equipment blockage may occur. Dense zirconium media can transfer strong impact energy, but excessive pressure may raise temperature or accelerate component wear. Monitor outlet temperature, current draw, and slurry flow during trials.
A useful test compares two or three bead sizes under identical conditions. Measure particle-size distribution, color strength, gloss, viscosity, and filter residue. A smaller final particle size is not automatically better. Over-milling may reduce stability or change the desired color tone. One common mistake is selecting 0.1 mm beads too early, before large agglomerates are reduced. Production feedback should guide the next adjustment, because laboratory results rarely match full-scale behavior perfectly.
Grinding Performance: Energy Input, Fineness, Wear Rate, and Throughput
For ink and dye grinding, zirconium beads should be judged by measured performance, not density alone. Energy input matters because excessive power can heat the mill and damage sensitive colorants. A technical report from the European Commission’s BREF on surface treatment links grinding efficiency with stress intensity, residence time, and cooling control. In practice, a stable process often uses smaller beads, controlled filling, and steady feed rates. Smaller beads help produce finer particles.
Fineness must be checked with particle-size analysis, not visual gloss. ISO 13320 recommends laser diffraction for repeatable particle-size measurement, while ASTM D1210 supports grind-gauge testing for coatings and printing inks. Many ink applications target submicron particle sizes, but the correct value depends on pigment type, color strength, and filtration needs. Too fine can be wasteful. That part is easy to overlook.
Wear rate directly affects contamination, maintenance, and batch consistency. A 2022 review in Powder Technology reported that zirconia media generally provides lower wear than glass or conventional ceramic media under demanding stirred-mill conditions, although bead quality and mill settings strongly change results. Track bead loss by weighing media before and after production. Throughput should be recorded with energy use, not alone. A faster line may consume more kilowatt-hours per kilogram and deliver poorer fineness. The best comparison uses particle size, kWh per kilogram, bead loss, temperature, and kilograms per hour from the same test batch. Real production is rarely perfectly balanced.
Top Zirconium Beads for Ink and Dye Grinding?
Grinding Performance: Energy Input, Fineness, Wear Rate, and Throughput
| Bead Diameter |
Energy Input
kWh/t |
D90 Fineness
µm |
Wear Rate
mg/kg |
Throughput
kg/h |
| 0.3 mm |
420 |
1.8 |
18 |
110 |
| 0.5 mm |
300 |
2.2 |
10 |
150 |
| 0.8 mm |
250 |
3.1 |
7 |
190 |
| 1.0 mm |
220 |
4.6 |
5 |
215 |
Smaller zirconium beads generally produce finer particle-size reduction, but they require more energy and may increase media wear. Larger beads typically improve throughput and wear resistance, while the 0.5–0.8 mm range can provide a practical balance for many ink and dye grinding processes.
