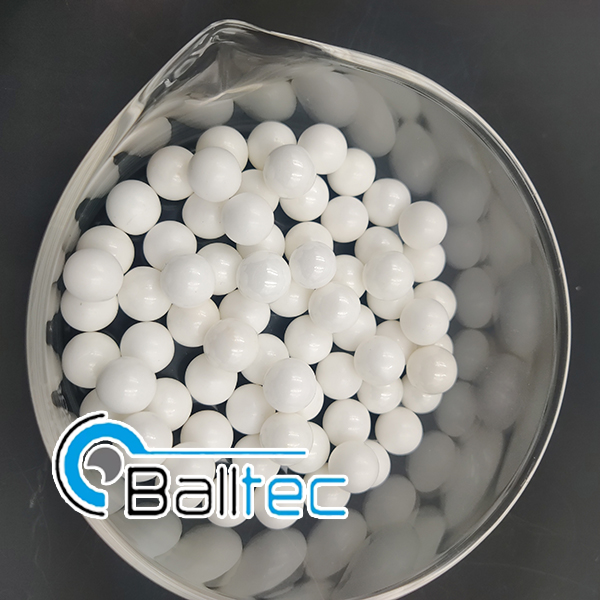

ZrO2 Grinding Bead for High Efficiency Fine Grinding Applications

Our ZrO2 Grinding Beads are premium high-performance media specifically designed for high-efficiency fine grinding applications across various industries. Crafted from high-purity yttrium-stabilized zirconia (Y-TZP) via advanced sintering and precision polishing processes, these beads combine exceptional hardness, superior wear resistance, and uniform particle distribution. Engineered to meet the demands of ultra-fine grinding, they deliver consistent results while minimizing contamination, making them ideal for producing high-quality, finely milled materials.

Technical Parameters Parameter Standard Value Material Yttrium Stabilized ZrO2 (Y-TZP)ZrO2 Purity≥95.5%Vickers Hardness11.0–12.0 GPaDensity6.0–6.15 g/cm³Wear Rate≤0.008% / 1000hAvailable Sizes0.1mm–20mm

High Efficiency & Fine Grinding Advantages

The core strength of our ZrO2 beads lies in their outstanding efficiency and fine grinding capabilities. Their ultra-high density and uniform roundness ensure optimal energy transfer during grinding, significantly accelerating material processing and achieving finer particle sizes in less time. Exceptional wear resistance minimizes bead degradation, reducing contamination and extending service life. With high chemical inertness, they are compatible with both wet and dry processes, maintaining material purity even in corrosive environments.

Application Fields

Tailored for high-efficiency fine grinding, these beads are widely used in industries requiring ultra-fine particle processing. In the new energy sector, they are ideal for grinding lithium battery electrode materials to enhance uniformity and performance. In the paint, ink, and coating industry, they produce high-quality pigments with superior dispersion. They are also extensively used in pharmaceutical, electronic ceramics, and advanced materials sectors, meeting strict fine grinding and purity requirements.

FAQs

Q1: Why are these ZrO2 beads ideal for fine grinding?

A1: Their high density, uniform roundness, and exceptional hardness ensure optimal grinding force, enabling efficient reduction to ultra-fine particle sizes with consistent results.

Q2: Can they be used in wet grinding processes?

A2: Yes, their excellent chemical stability makes them suitable for both wet and dry grinding, with no contamination risk to the processed materials.

Q3: How do they improve grinding efficiency?

A3: Their high density delivers stronger impact force, while smooth surfaces reduce friction loss, shortening grinding cycles by up to 30%.
