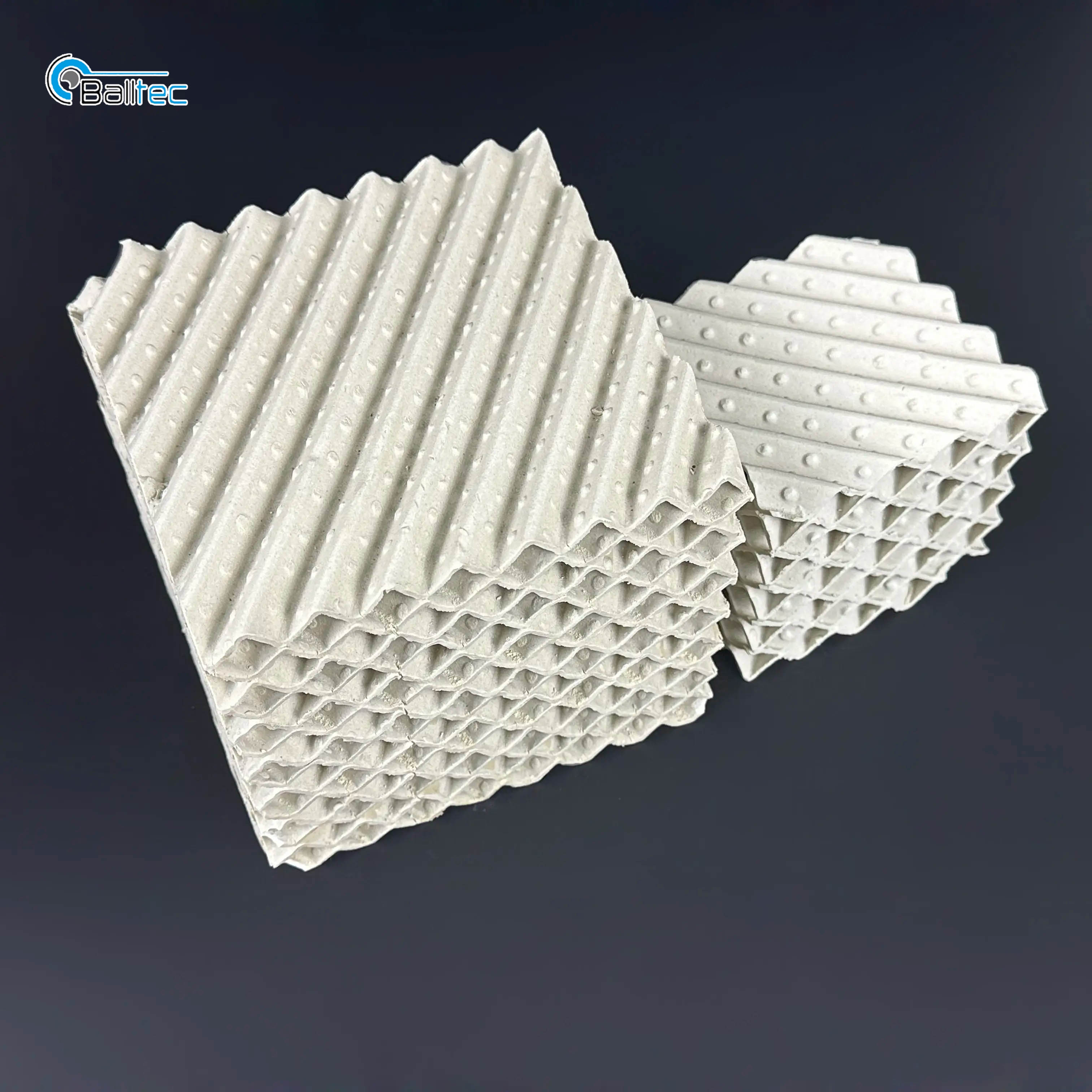

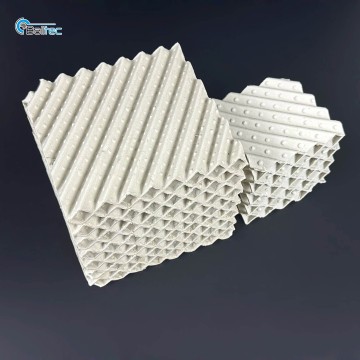

Ceramic Corrugated Structure Tower Packing & Ceramic Bellow Packing for Tower

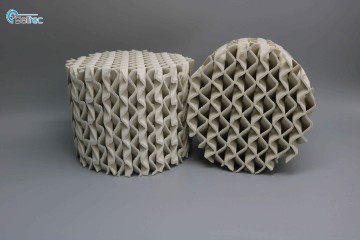

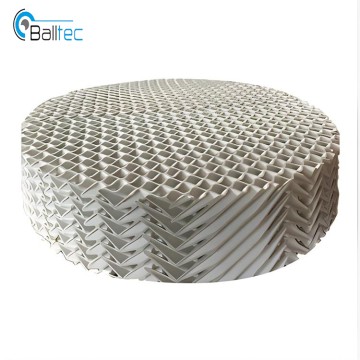

Ceramic corrugated packing is a disk-type structured packing composed of corrugated ceramic sheets arranged parallel and vertically to each other. It features a compact structure and large specific surface area.
When the tower diameter is less than 450 mm, the packing is made as a whole disk. When the diameter is larger than 450 mm, it is fabricated in segments.
During operation, adjacent disks are stacked with a 90° staggered arrangement, so that liquid is redistributed and evenly distributed after passing each disk layer, which improves gas-liquid contact. Compared with conventional random packing, it can greatly reduce resistance and achieve higher operating efficiency.
Characteristic Parameters
① Ceramic corrugated packing has an operating temperature up to 500 ℃ and a bulk density of 500–1000 kg/m³. The commonly used sheet thickness varies: thicker sheets result in smaller specific surface area, while thinner sheets provide larger specific surface area, which is more favorable for separation or absorption.
② Corrugation peak height: standard dimensions are generally used. For processes with high liquid flow such as absorption and cooling, standard peak height is applicable. For applications requiring low pressure drop, such as vacuum operation, lower peak height can be used.
③ Corrugation pitch is generally about twice the peak height to ensure symmetrical corrugations; conventional corrugation pitches are widely used in industry.
④ Disk height: the disk height produced by our factory is generally 50 mm, and the maximum can reach 200 mm. Smaller disk height leads to more frequent redirection and better liquid redistribution, but makes installation more complicated.
⑤ Arrangement angle is generally 30–45 degrees.
Product Specifications
|
Item |
Ceramic Corrugated Structure Tower Packing |
Ceramic Bellow Packing for Tower |
Remarks |
|
Product Name |
Ceramic Corrugated Structure Tower Packing |
Ceramic Bellow Packing for Tower |
High-efficiency ceramic packing for industrial towers |
|
Main Raw Materials |
High-quality kaolin, feldspar, acid-resistant hard porcelain |
High-quality kaolin, feldspar, acid-resistant hard porcelain |
SiO₂ ≥ 72%, Al₂O₃ ≥ 23%, Fe₂O₃ ≤ 0.5% |
|
Production Process |
Batching → Ball Milling → Vacuum Pulping → Blank Forming → Corrugating → Shaping → High-temperature Firing |
Batching → Ball Milling → Vacuum Pulping → Blank Forming → Bellow Forming → Shaping → High-temperature Firing |
Firing temperature: 1200-1400℃ |
|
Structure Type |
Corrugated sheet structured, disk-type (integral/segmented) |
Bellows-shaped, irregular/structured (customizable) |
Corrugated: 30°/45° inclination; Bellow: uniform protrusions |
|
Specific Surface Area |
125-500 m²/m³ (customizable) |
150-550 m²/m³ (customizable) |
Depends on sheet/bellow thickness |
|
Bulk Density |
500-1000 kg/m³ |
550-1050 kg/m³ |
Related to structure and thickness |
|
Porosity |
70%-78% |
72%-80% |
High porosity for low resistance |
|
Operating Temperature Range |
Long-term: -50℃ to 500℃; Short-term: Up to 800℃ |
Long-term: -50℃ to 500℃; Short-term: Up to 800℃ |
Stable performance under high temperature |
|
Corrosion Resistance |
Resistant to all inorganic acids (except HF), organic acids, organic solvents, and acidic gases |
Resistant to all inorganic acids (except HF), organic acids, organic solvents, and acidic gases |
Acid resistance ≥ 98.8%, Alkali resistance ≥ 88% |
|
Crush Strength |
≥ 120 MPa |
≥ 130 MPa |
High mechanical strength, not easy to break |
|
Tower Diameter Adaptation |
0.1-11 m (integral < 450mm; segmented > 450mm) |
0.1-11 m (customizable according to tower diameter) |
Suitable for laboratory and industrial towers |
|
Packaging |
20kg/50kg sealed moisture-proof plastic bags; 100kg/200kg fiber drums |
20kg/50kg sealed moisture-proof plastic bags; 100kg/200kg fiber drums |
Shock-proof lining to avoid damage during transportation |
|
Service Life |
5-8 years (under normal operating conditions) |
6-10 years (under normal operating conditions) |
Depends on operating conditions and maintenance |
|
Key Advantages |
Compact structure, uniform gas-liquid distribution, low resistance, high efficiency |
Large specific surface area, strong anti-clogging, good flexibility, high mass transfer efficiency |
Both have excellent corrosion and high temperature resistance |
